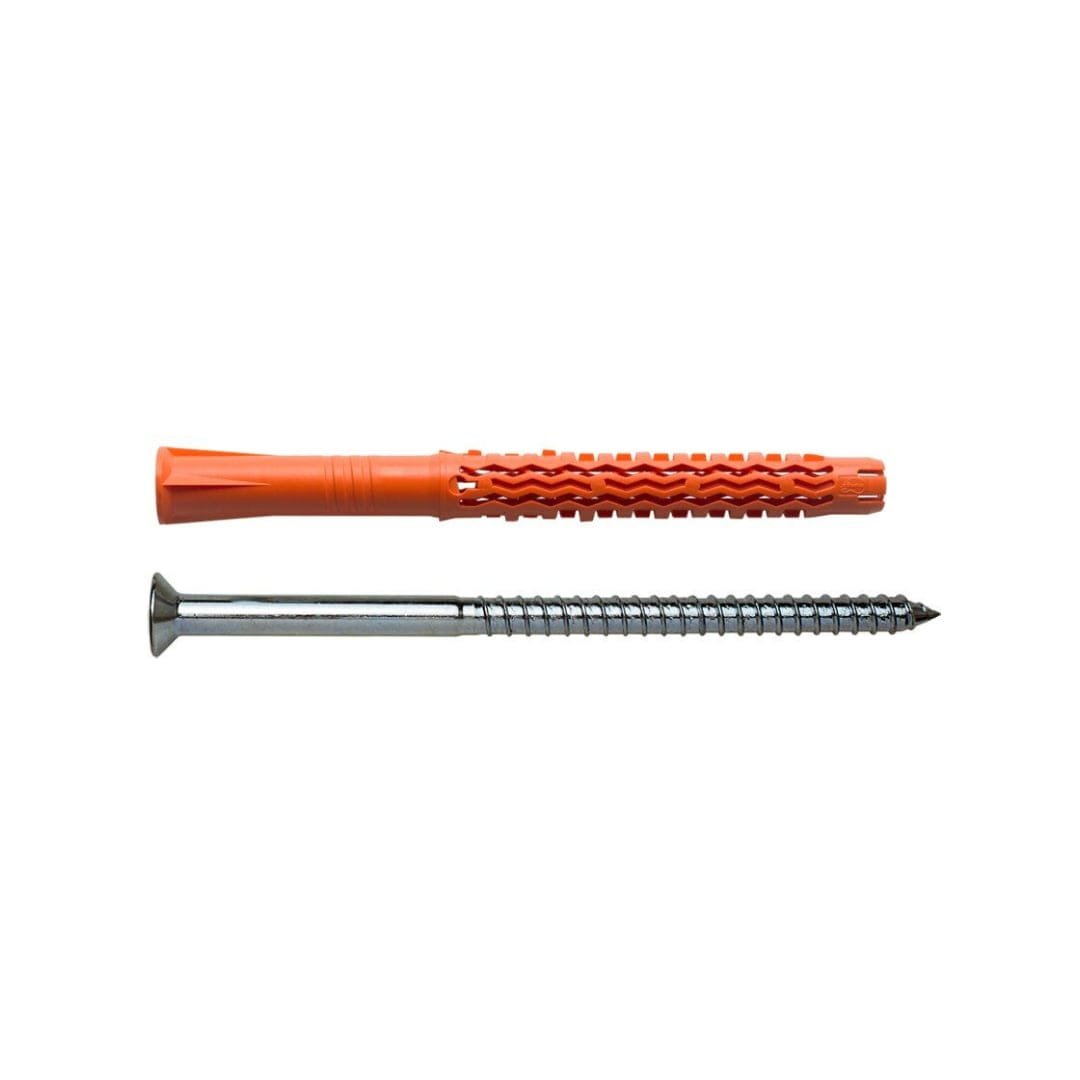

Universal Nylon Frame Plug – MQL-ST 10 x 80 / 10

Part Number: 1060108

Applications :

façade and roof substructures, ventilated façades, fixing for insulation, substructures, profiles

Key Features & Benefits :

• ETAG 020 – Approved for multiple uses in concrete and masonry for non-structural applications
• Assessment of resistance under fire exposure F90 for fastening of façade systems
• Quattro® Technology
• Increased load capacity due to 4 expansion zones
• Universal use
• Setting a depth of 70mm results in higher loadings
• Knot forming leads to high resistance in cavities
• Longer plugs with reinforced shank
• 3-times rotation resistance stops the plug from rotating in the drill hole (especially in softer materials)
• Knock-in protection prevents premature expansion while installing
• Oversize plugs molded in one piece up to the overall length of 300mm
• Made from high-quality polyamide PA6
• Through fixing
• Indoor (zinc-plated) and outdoor (stainless steel) applications
